N800AH
7.0W/m·K
Low outgassing
Silicone-free thermal pads have been widely applied in fields sensitive to silicone contamination or with strict electrical insulation requirements. In "sensitive" or "critical" applications such as optical, medical, semiconductor, automotive ADAS, aerospace, and 5G systems, the primary driving factors for selecting non-silicone thermal interface materials extend beyond thermal conductivity performance to their comprehensive value in system reliability, safety, and long-term operational stability, far surpassing the functional positioning of traditional materials.
CATEGORY
FEATURES
/ Thermal conductivity: 7.0 W/m·K
/ It’s made by non-silicone resin materials
/ Low contact thermal resistance
/ With electrical insulation
/ Outstanding thermal conductivity
/ Applicable to optical and sensitive electric components
CONFIGURATIONS
/ Sheets form

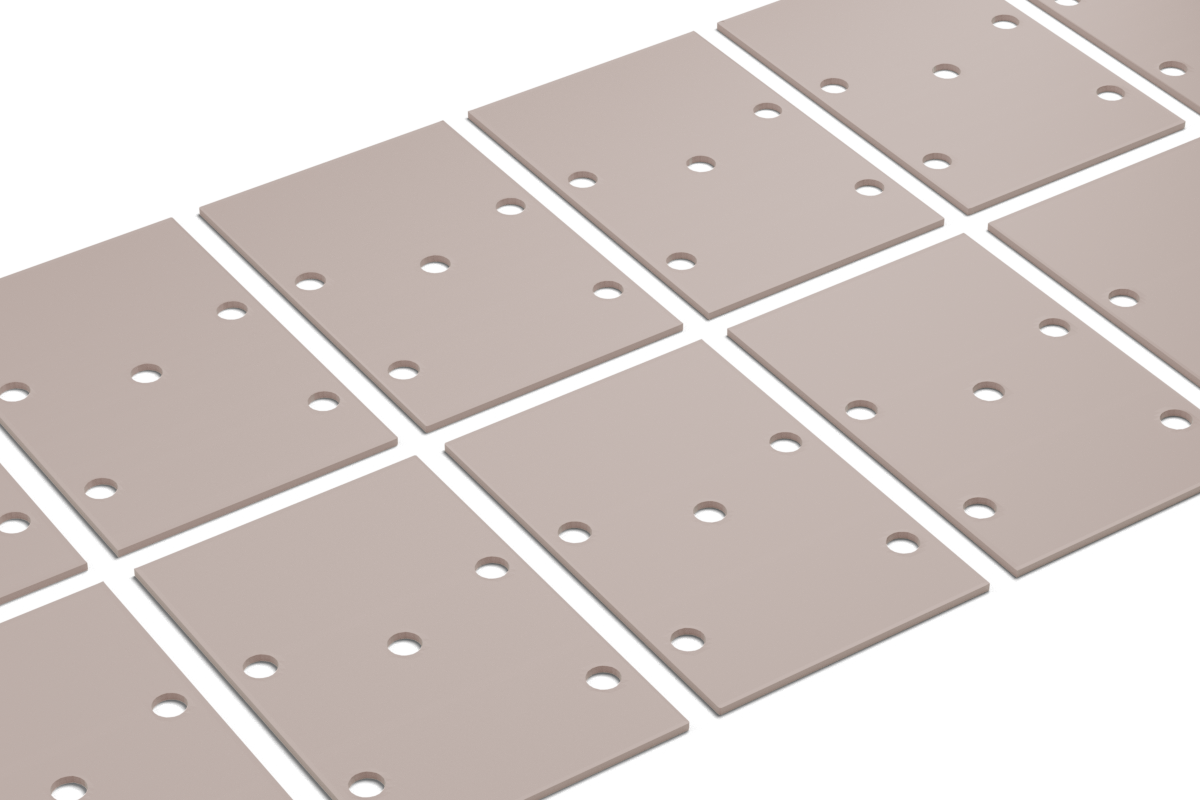

/ Die-cuts parts
TYPICAL APPLICATION
/ High speed mass storage drives
/ Optical appliance
/ 5G base station & infrastructure
/ EV electric vehicle
Thermal Resistance vs. Pressure vs. Deflection
TYPICAL PROPERTIES
| Item | N800AH-s | UNIT | TEST METHOD |
|---|---|---|---|
| Color | Pink | – | Visual |
| Surface tack 2-side/1-side | 2 | – | – |
| Thickness | Customized | mm | ASTM D374 |
| Density | 3.3 | g/cm³ | ASTM D792 |
| Hardness | 60 | Shore OO | ASTM D2240 |
| Application temperature | -60～130 | °C | – |
| Low molecular Siloxane(D3 to D20 total) | N.D | % | Gas Chromatography |
| RoHS & REACH | Compliant | – | – |
| [email protected] | |||
| Deflection @10 psi | 15 | % | ASTM D5470 modify |
| Deflection @20 psi | 40 | % | ASTM D5470 modify |
| Deflection @30 psi | 67 | % | ASTM D5470 modify |
| ELECTRICAL | |||
| Dielectric breakdown | 8 | kV/mm | ASTM D149 |
| Surface resistivity | >1011 | Ohm | ASTM D257 |
| Volume resistivity | >1010 | Ohm-m | ASTM D257 |
| THERMAL | |||
| Thermal conductivity | 7.0 | W/m·K | ASTM D5470 |
| Thermal impedance@10 psi | 0.274 | °C·in²/W | ASTM D5470 |
| Thermal impedance@20 psi | 0.182 | °C·in²/W | ASTM D5470 |
| Thermal impedance@30 psi | 0.121 | °C·in²/W | ASTM D5470 |
