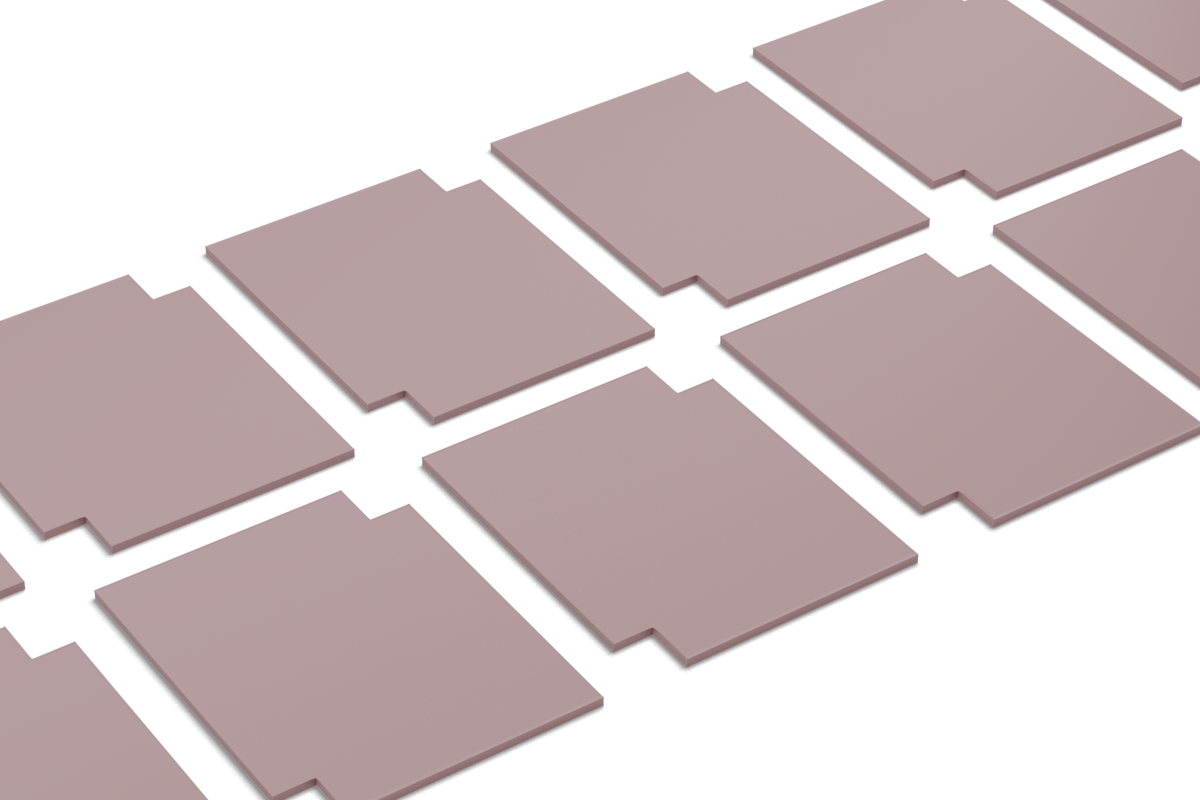

N800A-s
9.0W/m·K
Low outgassing
ASTM E595
Silicone-free thermal pads have become indispensable solutions in the thermal management field of modern electronic devices. By eliminating contamination risks from low molecular weight siloxane outgassing, they provide excellent electrical insulation performance and demonstrate thermal conductivity capabilities that match or even exceed traditional silicone-based materials, thereby significantly enhancing device reliability and long-term stability.
CATEGORY
FEATURES
/ Thermal conductivity： 9.0 W/m・K
/ It’s made by non-silicone resin materials
/ Low contact thermal resistance
/ With electrical insulation
/ Outstanding thermal conductivity
/ Applicable to optical and sensitive electric components
CONFIGURATIONS
/ Sheets form
/ Die-cuts parts
TYPICAL APPLICATION
/ High speed mass storage drives
/ Optical appliance
/ 5G base station & infrastructure
/ EV electric vehicle
Thermal Resistance vs. Pressure vs. Deflection
TYPICAL PROPERTIES
| Property | N800A-s | UNIT | TEST METHOD |
|---|---|---|---|
| Color | Pink | – | Visual |
| Surface tack 2-side/1-side | 2 | – | – |
| Thickness | Customized | mm | ASTM D374 |
| Density | 3.4 | g/cm³ | ASTM D792 |
| Hardness | 50 | Shore OO | ASTM D2240 |
| Application temperature | -60～130 | °C | – |
| Low molecular Siloxane(D3 to D20 total) | N.D | % | Gas Chromatography |
| Total Mass Loss (TML) | ≤ 1.0 | % | ASTM E595 |
| Collected Volatile Condensable Materials （CVCM） | ≤ 0.1 | % | ASTM E595 |
| Water Vapor Regained（WVR） | ≤ 0.02 | % | ASTM E595 |
| RoHS & REACH | Compliant | – | – |
| [email protected] | |||
| Deflection @10 psi | 14 | % | ASTM D5470 modify |
| Deflection @20 psi | 35 | % | ASTM D5470 modify |
| Deflection @30 psi | 67 | % | ASTM D5470 modify |
| ELECTRICAL | |||
| Dielectric breakdown | 8 | kV/mm | ASTM D149 |
| Surface resistivity | >1011 | Ohm | ASTM D257 |
| Volume resistivity | >1010 | Ohm-m | ASTM D257 |
| THERMAL | |||
| Thermal conductivity | 9.0 | W/m·K | ASTM D5470 |
| Thermal impedance@10 psi | 0.238 | °C·in²/W | ASTM D5470 |
| Thermal impedance@20 psi | 0.166 | °C·in²/W | ASTM D5470 |
| Thermal impedance@30 psi | 0.102 | °C·in²/W | ASTM D5470 |
