NewestDTT56-s Curable Thermal Grease

NEW Product

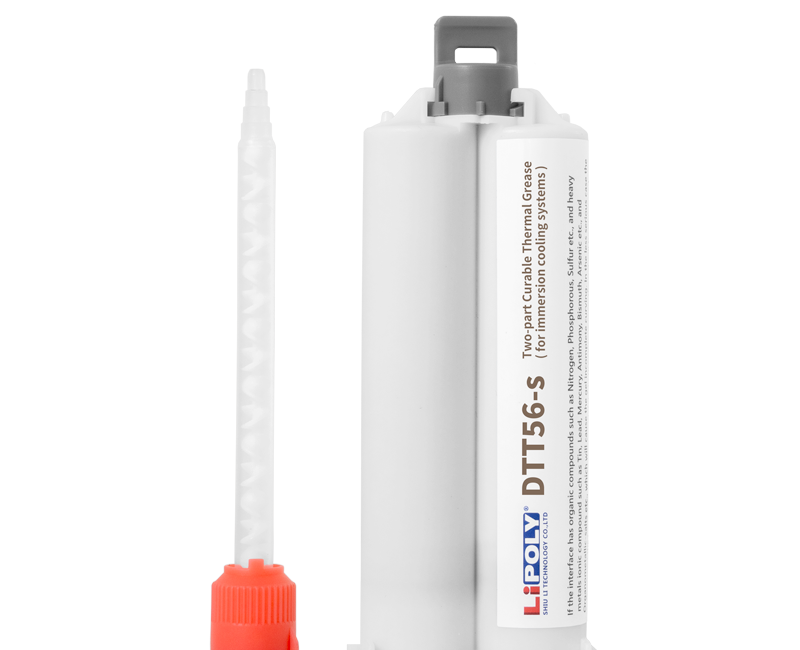

DTT56-s Curable Thermal Grease
This product is a high thermal conductivity liquid material designed for AI chip cooling, offering excellent gap-filling capability and heat-curable properties to effectively reduce junction temperatures in high-performance computing systems. Its stable material structure makes it an ideal thermal interface material for immersion cooling, maintaining consistent thermal performance under prolonged liquid exposure and thermal cycling conditions.

FEATURES

  • 6.0 W/m·K thermal conductivity for effective AI chip junction temperature reduction
  • Liquid gap-filling material that becomes heat-cured for long-term resistance to fluid flow and thermal cycling in high-load EV applications
  • Heat-cured for high structural stability under long-term fluid flow and thermal cycling
  • Compatible with immersion cooling, with no dissolution, swelling, or contaminant leaching
  • High reliability with stable thermal performance under long-term high-temperature operation

CONFIGURATIONS

  • Cartridges: 50ml, 400ml
  • Other special and custom sizes are available upon request

TYPICAL APPLICATION

  • AI GPU Modules (NVIDIA, AMD, and proprietary ASICs)
  • AI Servers with Immersion Cooling
  • High-Power Accelerator Cards, including OAM, HGX, and custom-designed modules
  • Liquid Cooling / Immersion Hybrid Thermal Architecture
  • High-Performance Computing (HPC) Systems
  • Industrial Servers / Industrial Control Computing Platforms
  • Power Modules / Power Electronics Cooling
  • Telecommunications / 5G High-Density Computing Modules
  • EV / New Energy High-Power Electronic Modules

TYPICAL PROPERTIES

PROPERTY DTT56-s Curable Thermal Grease UNIT TEST METHOD
Color White (A part) Gray (B part) - Visual
A:B 100:100 - -
Viscosity A 273 Pa.s ISO 3219
Viscosity B 273 Pa.s ISO 3219
Density 3.3 g/cm³ ASTM D792
Shelf Life 24 months - -
Hardness (AFTER CURE) 25 Shore A ASTM D2240
ROHS & REACH Compliant - -
THERMAL
Thermal conductivity 6.0 W/m*K ASTM D5470
Thermal impedance@2mils BLT - °C-in²/ W ASTM D5470
Working temp (long term) -60 ~ 200 °C -
