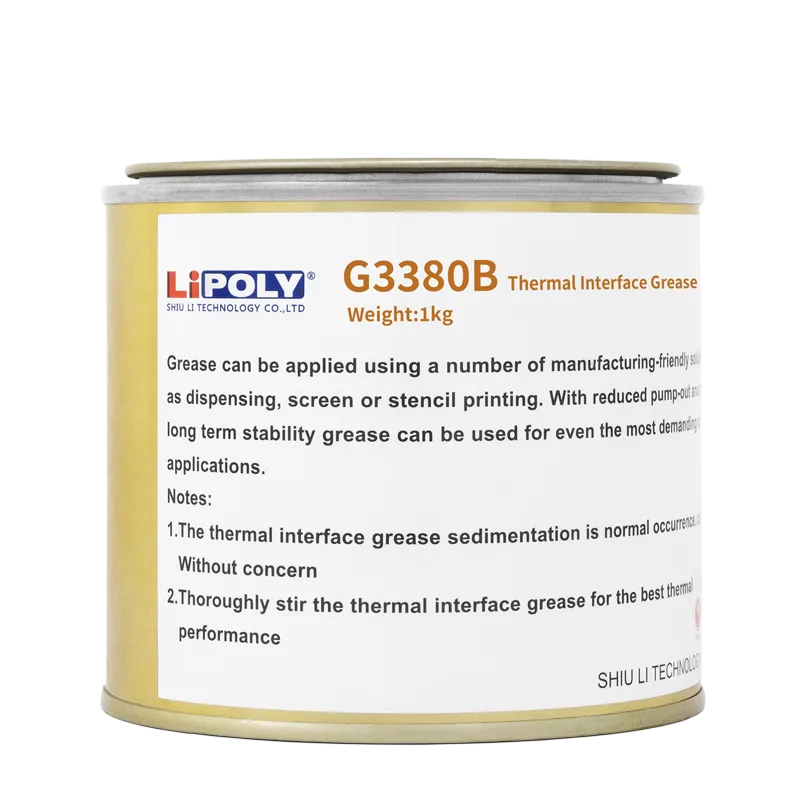

G3380B
3.2 W/m·K
Low minimum bond line
The G3380B series thermal Paste features extremely low thermal resistance and excellent thermal conductivity. It has been widely used in thermal management for consumer electronics and microprocessors. As the temperature of components rises, the viscosity of the grease decreases, allowing it to better wet the interface components. With a thermal conductivity of 3.2 W/m·K, it serves as an effective gap-filling material.
Datasheet Download

CATEGORY

FEATURES

/ Thermal conductivity: 3.2 W/m·K
/ Low thermal impedance
/ Can be applied manually dispensed or screen printed
/ Low minimum bond line

CONFIGURATIONS

/ Tinplate Can:1kg
/ Other special and custom sizes are available upon request

TYPICAL APPLICATION

/ LED appliance
/ EV electric vehicle
/ CPU and chip coolers
/ Switching power supplies
/ 5G base station & infrastructure
/ Between any heat-generating component and heat sink

TYPICAL PROPERTIES

PROPERTY G3380B UNIT TEST METHOD
Color Gray - Visual
Resin Base Silicone - -
Filler Non-Metal - -
Viscosity 130 Pa.s ISO 3219
Density 2.7 g/cm³ ASTM D792
Application temperature -60~180 °C -
Bond Line Thickness 33 µm -
ROHS & REACH Compliant - -
THERMAL
Thermal conductivity 3.2 W/m·K ASTM D5470
Thermal impedance@50psi 0.03 °C-in²/ W ASTM D5470
Thermal impedance@50psi 19.3 °C-mm²/ W ASTM D5470
