TEM96D
5.0 W/m*K
Absorber
RF/EMI 導熱吸波墊片是一種複合材料，專為解決現代電子設備中日益嚴峻的熱管理與射頻/電磁干擾相容性挑戰而設計。TEM96D墊片巧妙地結合了高效導熱與電磁波吸收的雙重功能，能夠將熱量從發熱源迅速傳導至散熱器或外部環境，同時降低電磁干擾，確保了產品的品質。
CATEGORY
FEATURES
/ Thermal conductivity: 5.0 W/m*K
/ Excellent absorption characteristics
/ Naturally tacky
/ Reworkable
SPECIFICATIONS
/ Sheet form
/ Die-cut parts
TYPICAL APPLICATION
/ IC, CPU, MOS, LED, M/B, Heat sink
/ LCD-TV, Notebook PC, PC, Telecom device, Wireless hub
/ DDR II module, DVD applications, Hand-set applications
/ 5G base station & infrastructure
// 2.4 GHz Wi-Fi Router , Bluetooth
// 3.5 GHz 5G Mobile Networks
// 5.0 GHz Wi-Fi Router
// 12~18 GHz Low Earth Orbit (LEO) System
// 28 GHz 5G Mobile Networks
// 39 GHz 5G Mobile Networks
TYPICAL PROPERTIES
| PROPERTY | TEM96D | UNIT | TEST METHOD |
|---|---|---|---|
| Color | Dark Gray | - | Visual |
| Surface tack 2-side/1-side | 2 | - | - |
| Thickness | Customized | mm | ASTM D374 |
| Density | 3.6 | g/cm³ | ASTM D792 |
| Hardness | 68 | Shore OO | ASTM D2240 |
| TML | 0.04 | % | By LiPOLY |
| Water absorption | 0.04 | % | ASTM D570 |
| ROHS & REACH | Compliant | - | - |
| THERMAL | |||
| Thermal conductivity | 5.0 | W/m*K | ASTM D5470 |
| Thermal impedance@10 psi | 0.329 | °C-in²/ W | ASTM D5470 |
| Thermal impedance@50 psi | 0.272 | °C-in²/ W | ASTM D5470 |
Related Product
TEM96D
5.0 W/m*K
Absorber
TEM96C
4.0 W/m*K
Absorber

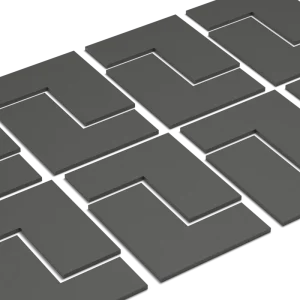

TEM96B
