S393
2.2 W/m*K
Tensile strength 0.75 MPa
S393 is a high ductile thermal pad featuring excellent tensile resilience. Its high ductility structure enhances the pad’s operability and durability, making it resistant to cracking and deformation during stamping, strip cutting, or irregular shape processing. This makes it the optimal choice for shock absorption, cushioning, and tolerance absorption applications.
CATEGORY
FEATURES
/ Thermal conductivity: 2.2 W/m*K
/ Easy to assemble
/ High reliability
/ Highly ductile and tear resistant
/ Shock and vibrating absorber
SPECIFICATIONS
/ Sheet form
/ Die-cut parts
TYPICAL APPLICATION
/ Between CPU and heat sink.
/ Between a component and heat sink
/ Flat-panel displays
/ LED
/ HDDs, DVDs
/ Memory modules
/ Power supplies
/ 5G base station & infrastructure
/ EV electric vehicle
TYPICAL PROPERTIES
| PROPERTY | S393 | UNIT | TEST METHOD |
|---|---|---|---|
| Color | Light green | - | Visual |
| Surface tack 2-side/1-side | 2 | - | - |
| Thickness | Customized | mm | ASTM D374 |
| Density | 2.2 | g/cm³ | ASTM D792 |
| Hardness | 15 | Shore A | ASTM D2240 |
| Application temperature | -60~200 | °C | - |
| Tensile strength | 0.75 | MPa | ASTM D412 |
| ROHS & REACH | Compliant | - | - |
| THERMAL | |||
| Thermal conductivity | 2.2 | W/m*K | ASTM D5470 |

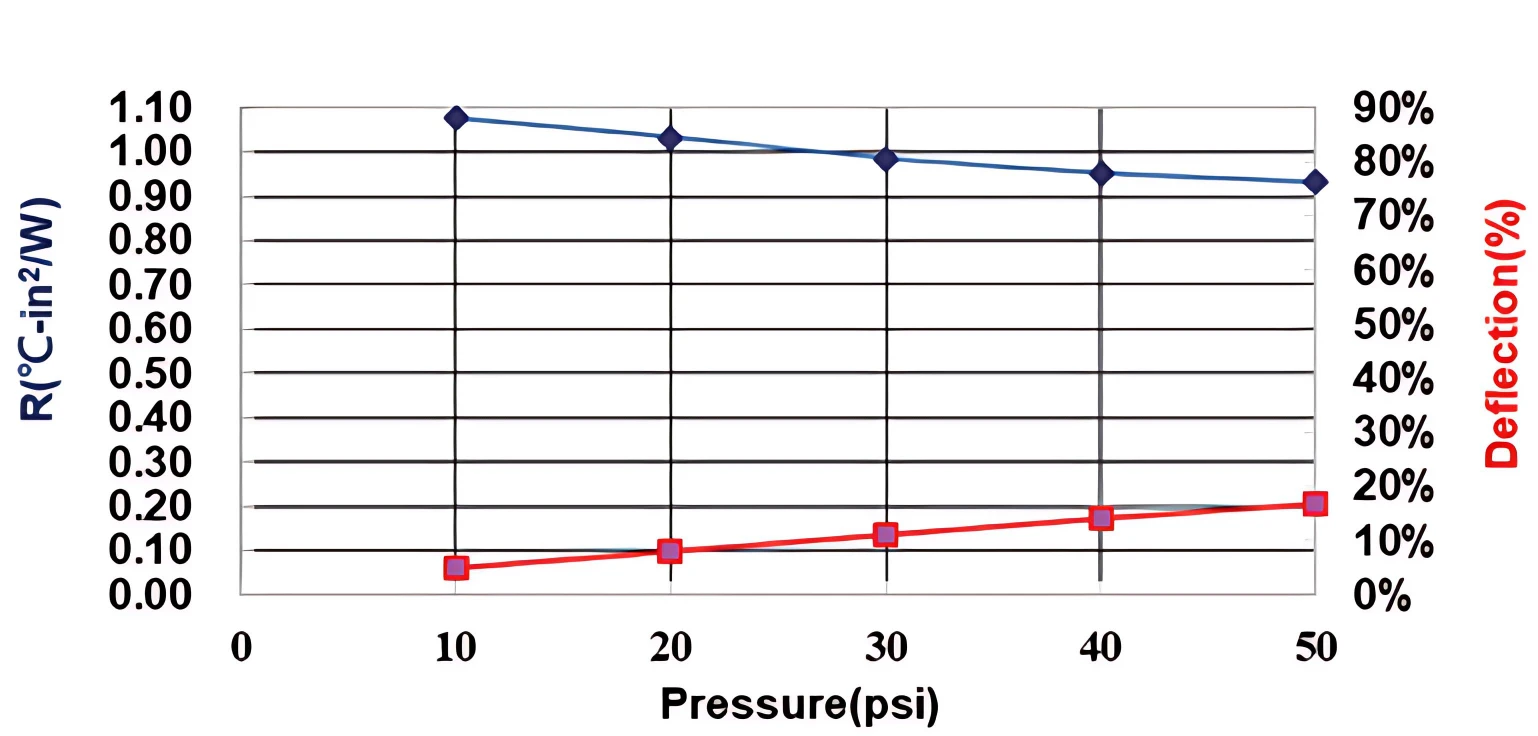

| Thermal impedance@10 psi | 1.075 | °C-in²/ W | ASTM D5470 |
| Thermal impedance@50 psi | 0.932 | °C-in²/ W | ASTM D5470 |
