AS400-s
4.0 W/m·K
Oil bleed width < 1mm
AS400-s Low Oil Bleed Thermal Gap Filler features low oil bleeding characteristics under high compression, preventing contamination of electronic components due to silicone oil seepage or combining with environmental dust that causes contamination and affects product appearance. With Shore OO/45 hardness, it provides flexibility, compressibility, and electrical insulation properties.
CATEGORY
FEATURES
/ Thermal conductivity: 4.0 W/m·K
/ High compression rate
/ Low oil-bleeding
/ Naturally tacky and high resilience
CONFIGURATIONS
/ Sheets form
/ Die-cuts parts
TYPICAL APPLICATION
/ Notebook computers
/ Heat pipe assemblies
/ TV hardware
/ Wireless communication hardware
/ High speed mass storage drives
/ Set-top box
/ IP CAM

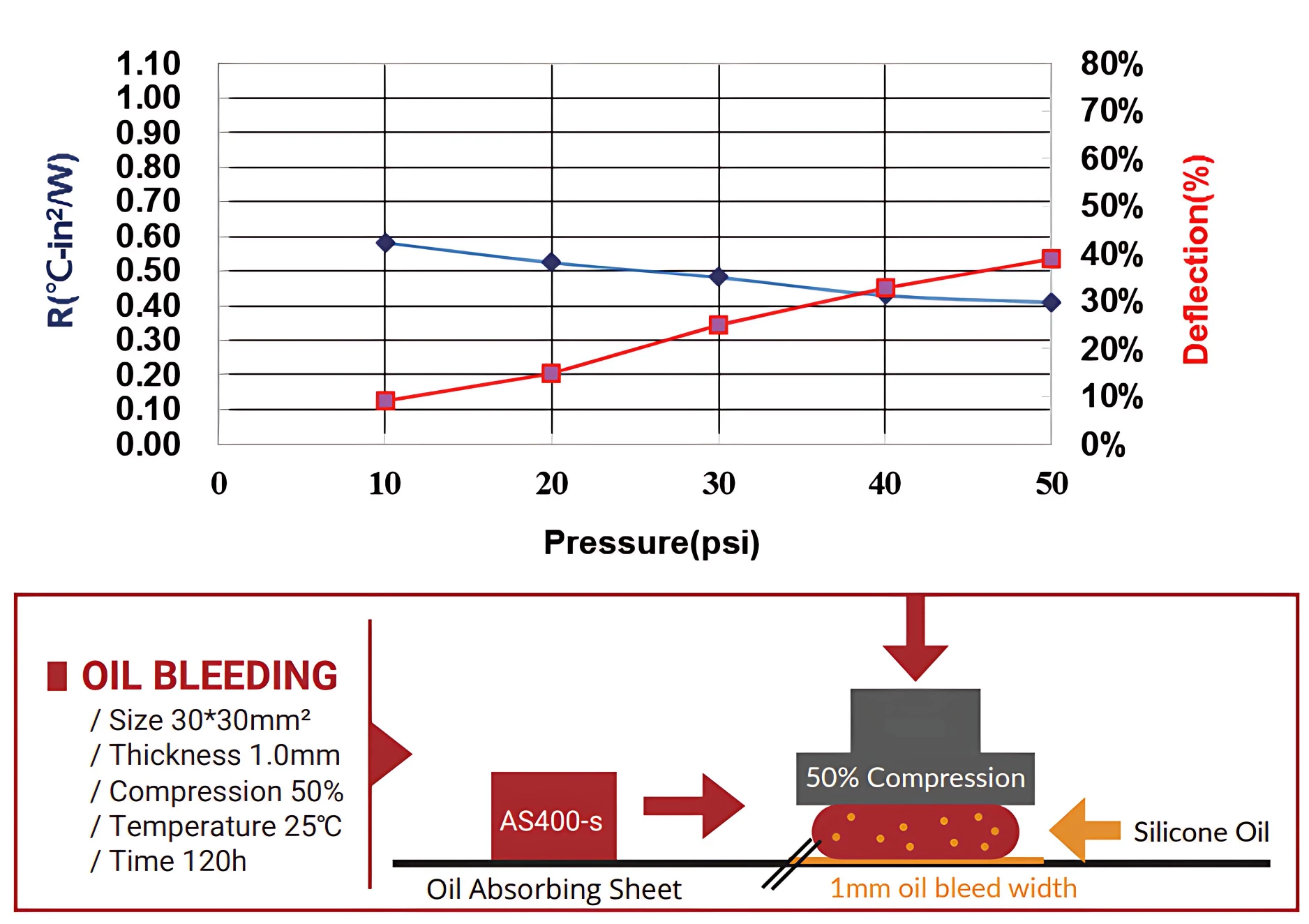

Thermal Resistance vs. Pressure vs. Deflection
TYPICAL PROPERTIES
| PROPERTY | AS400-s | UNIT | TEST METHOD |
|---|---|---|---|
| Color | Blue | - | Visual |
| Surface tack 2-side/1-side | 2 | - | - |
| Thickness | Customized | mm | ASTM D374 |
| Density | 2.6 | g/cm³ | ASTM D792 |
| Hardness | 45 | Shore OO | ASTM D2240 |
| Application temperature | -60~180 | °C | - |
| Dielectric breakdown | 12 | KV/mm | ASTM D149 |
| ROHS & REACH | Compliant | - | - |
| THERMAL | |||
| Thermal conductivity | 4.0 | W/m·K | ASTM D5470 |
| Thermal impedance@10 psi | 0.582 | °C-in²/ W | ASTM D5470 |
| 熱阻抗@40 psi | 0.431 | °C-in²/ W | ASTM D5470 |
