NewestGeneral Thermal Pad

NEW Product

General Thermal Pad
PK700 is a thermal gel pad for gap filling with 7.0 W/m·K thermal conductivity and Shore OO/55 hardness. It's highly flexible, compressible, and self-adhesive, covering design tolerances for stable performance. Custom shape molding is also available.
PK700 thermal pad is a thermal interface material (TIMs) designed to reduce thermal interface resistance between heat sources and heat sinks, with wide applications from CPU/GPU cooling to automotive electronics. Compliant with RoHS/REACH , it is also suitable for medical equipment/food machinery. With Shore OO/55 hardness, it offers excellent flexibility, compressibility, insulation properties, and available with customized cutting and die-cutting services.

FEATURES

/ Thermal conductivity: 7.0 W/m·K
/ Naturally tacky for ease of manufacture
/ Extremely low thermal impedance
/ Available in a range of thicknesses

CONFIGURATIONS

/ Roll form
/ Sheets form

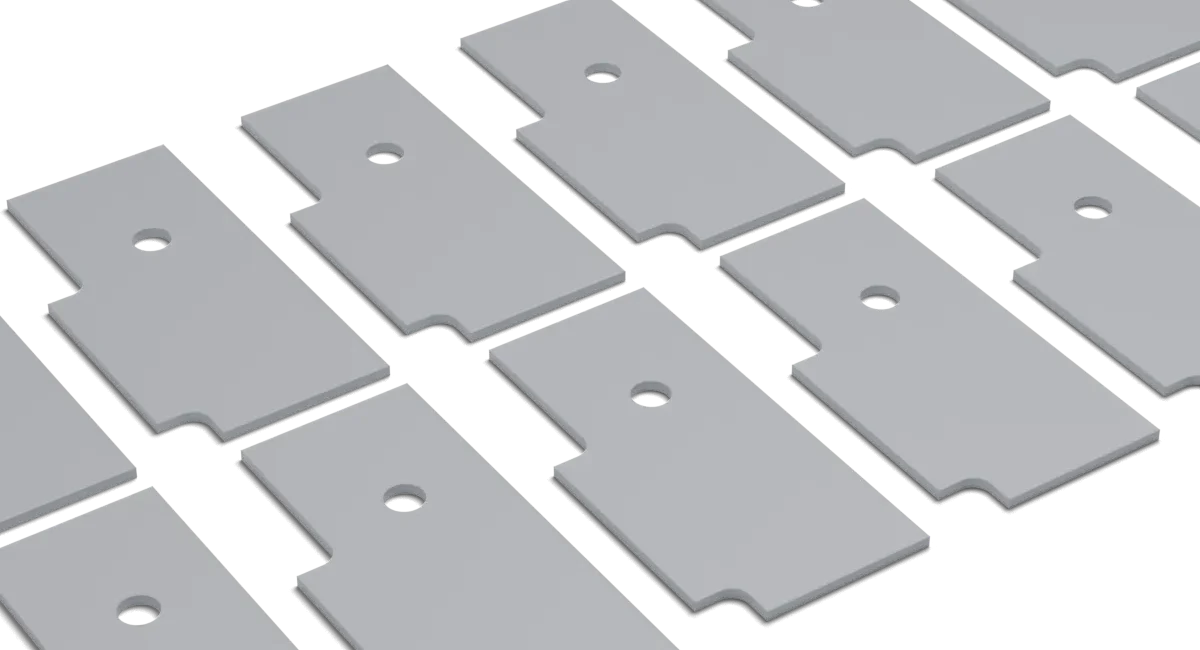

/ Die-cuts parts

Datasheet Download

Thermal Resistance vs. Pressure vs. Deflection

TYPICAL APPLICATION

/ Notebook computers
/ Heat pipe assemblies
/ Memory modules
/ TV hardware
/ Automotive electronics
/ Mobile devices
/ High speed mass storage drives
/ Set-top box
/ IP CAM
/ 5G base station & infrastructure
/ EV electric vehicle

TYPICAL PROPERTIES

PROPERTY General Thermal Pad UNIT TEST METHOD
Color Gray - Visual
Surface tack 2-side/1-side 2 - -
Thickness Customized mm ASTM D374
Density 3.3 g/cm³ ASTM D792
Hardness 55 Shore OO ASTM D2240
Application temperature -60~180 °C -
Dielectric breakdown 12 KV/mm ASTM D149
ROHS & REACH Compliant - -
THERMAL
Thermal conductivity 7.0 W/m*K ASTM D5470
Thermal impedance@10 psi 0.321 °C-in²/ W ASTM D5470
Thermal impedance@20 psi 0.288 °C-in²/ W ASTM D5470
