AT920-s
3.5 W/m*K
Low outgassing
AT920-s 導熱膠帶具有高導熱係數、高黏度和低熱阻抗，可以有效地取代導熱膏和機械固定的功能。它能填補發熱源與散熱器之間的不平整空隙，將熱量有效傳導，達到降溫散熱的效果。
耐電壓擊穿最高可達 7KV，熱傳導係數：3.5W / m*K，當溫度和溫度升高時，導熱膠帶的粘性和強度會增加，可客製化裁切沖型，可以滿足客戶在面對今日先進產品上特殊的需求。
CATEGORY
FEATURES
/ Thermal conductivity:3.5 W/m*K
/ Excellent adhesive properties
/ Designed for manufacture
/ Excellent long term reliability
SPECIFICATIONS

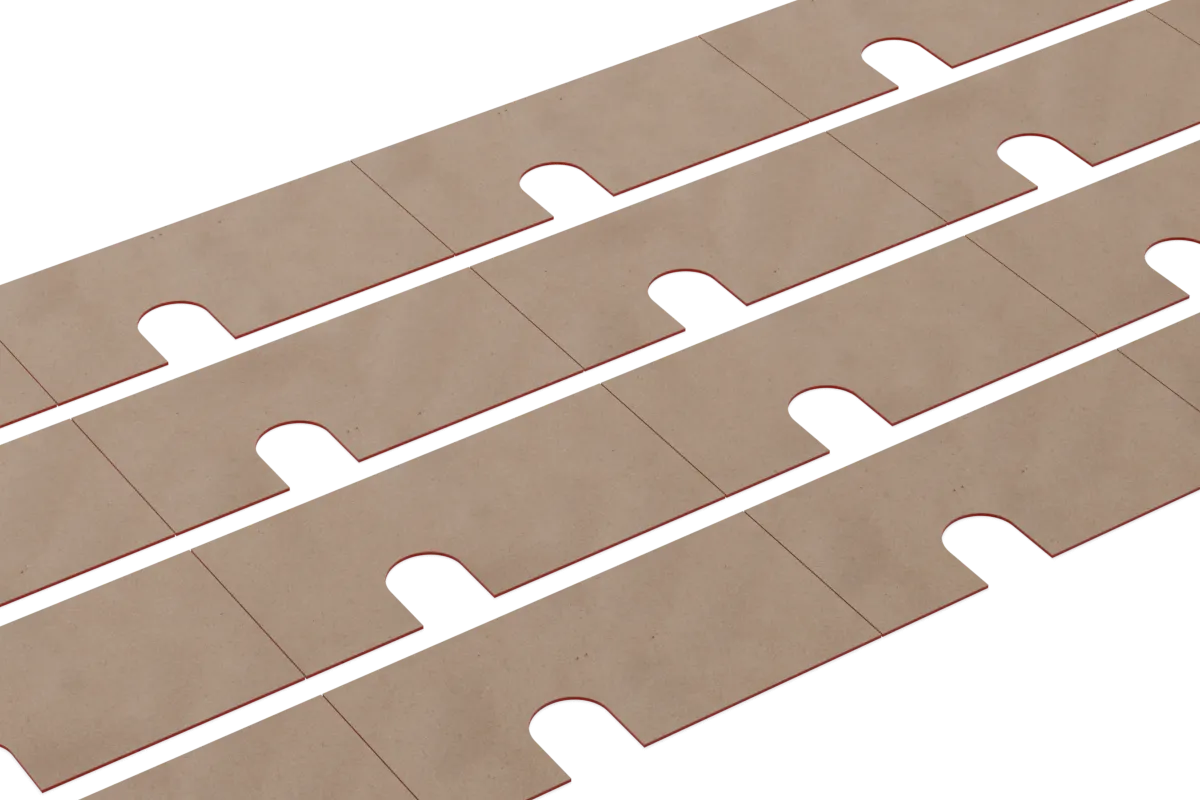

/ Roll form
/ Sheet form
/ Die-cut parts
TYPICAL APPLICATION
/ Automotive electronics
/ Telecommunications
/ LED light bar & LED lamp
/ Between any heat-generating component and heat sink
/ 5G base station & infrastructure
/ EV electric vehicle
Thermal Resistance vs. Pressure
TYPICAL PROPERTIES
| PROPERTY | AT920-s | UNIT | TEST METHOD |
|---|---|---|---|
| Color | White | - | Visual |
| Reinforced layer | None | - | - |
| Thickness | 0.50~3.0 | mm | ASTM D374 |
| Density | 2.6 | g/cm³ | ASTM D792 |
| Application temperature | -60~120 | °C | - |
| Short time temp. @15min | 200 | °C | - |
| ROHS & REACH | Compliant | - | - |
| THERMAL | |||
| Thermal conductivity | 3.5 | W/m*K | ASTM D5470 |
| Thermal impedance@5psi | 0.54 | °C-in²/ W | ASTM D5470 |
| Thermal impedance@15psi | 0.50 | °C-in²/ W | ASTM D5470 |
