N800B-s
13.0 W/m·K
Low outgassing
Non-Silicone thermal pads prevent outgassing, critical for thermal management in optical, medical, and semiconductor applications where silicone sensitivity exists. High temperatures or enclosed spaces cause silicone compounds to vaporize, forming insulating films on contacts, lenses, and sensors, which impair electrical connectivity, signal transmission, and light transmission, ultimately causing malfunctions and reduced lifespan.

CATEGORY

FEATURES

/ Thermal conductivity: 13.0 W/m·K
/ It’s made by non-silicone resin materials
/ Low contact thermal resistance
/ With electrical insulation
/ Outstanding thermal conductivity
/ Applicable to optical and sensitive electric components

CONFIGURATIONS

/ Sheets form
/ Die-cuts parts

TYPICAL APPLICATION

/ High speed mass storage drives
/ Optical appliance
/ 5G base station & infrastructure
/ EV electric vehicle

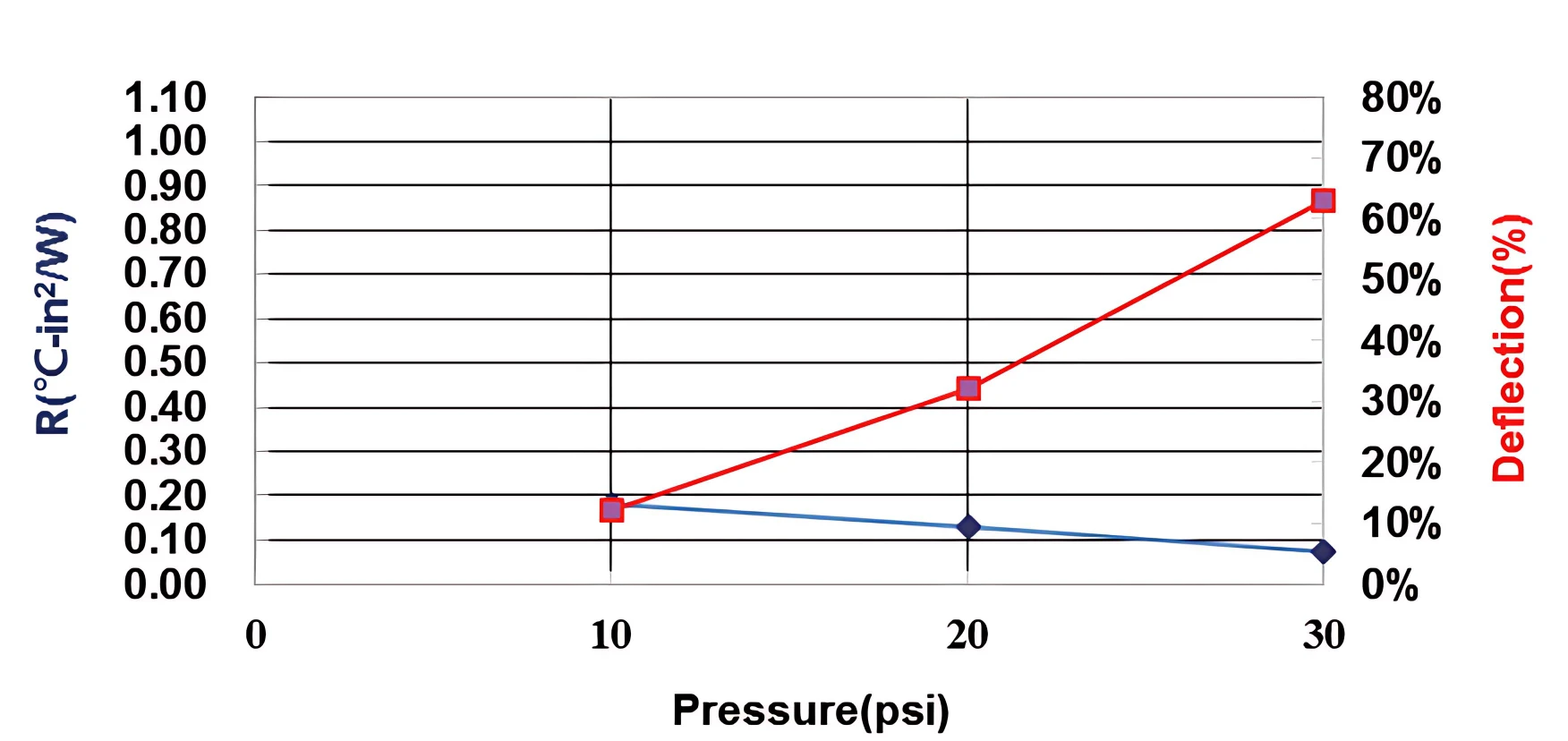

Thermal Resistance vs. Pressure vs. Deflection

TYPICAL PROPERTIES

PROPERTY N800B-s UNIT TEST METHOD
Color Gray - Visual
Surface tack 2-side/1-side 2 - -
Thickness Customized mm ASTM D374
Density 3.3 g/cm³ ASTM D792
Hardness 50 Shore OO ASTM D2240
Tensile strength 0.15 Kgf/cm² ASTM D412
Outgassing CVCM (wt%) 0.0045 - By LiPOLY
ROHS & REACH Compliant - -
THERMAL
Thermal conductivity 13.0 W/m·K ASTM D5470
Thermal impedance@10 psi 0.183 °C-in²/ W ASTM D5470
Thermal impedance@30 psi 0.074 °C-in²/ W ASTM D5470
