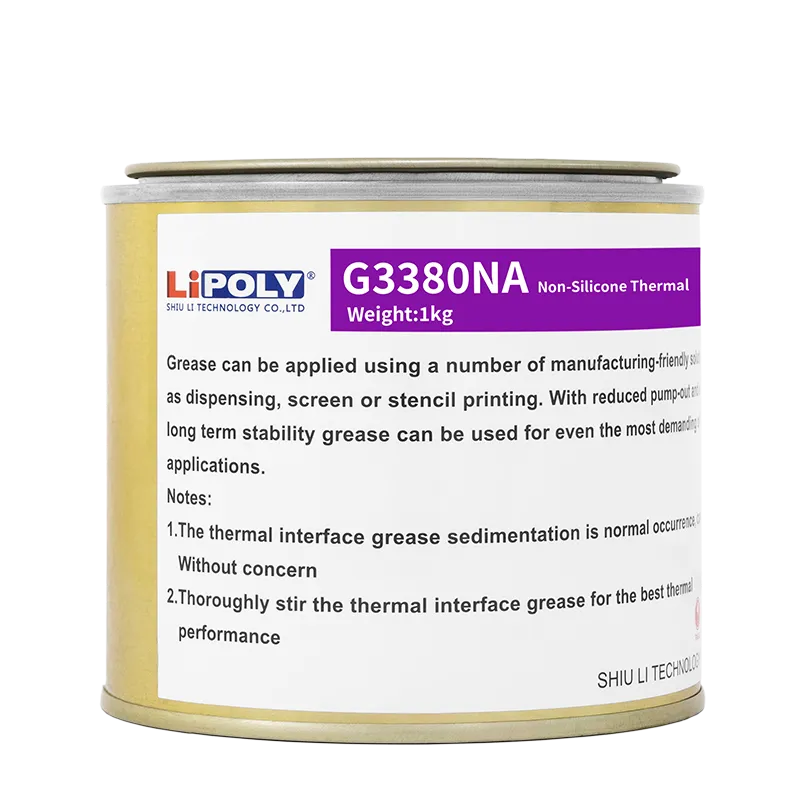

G3380NA
1.3 W/m*K
Low outgassing
G3380NA是具有熱傳導係數：1.3 W/m*K的非矽型導熱膏，無低分子矽氧烷揮發，不會造成電器接點故障，適合光學產品或敏感的電子原件使用，具有極低熱阻和良好的導熱性，已廣泛用於消費電子產品和微處理器的熱控制技術，當組件的溫度升高，潤滑脂的粘性會降低，可以潤濕界面元件
CATEGORY
FEATURES
/ Thermal conductivity: 1.3 W/m*K
/ Low outgassing
/ Low thermal impedance
// It can be preserved for 60 months under the condition of unopened and under room temperature 25℃.
CONFIGURATIONS
/ Tinplate Can:1kg
/ Other special and custom sizes are available upon request
TYPICAL APPLICATION
/ CPU and chip coolers
/ Switching power supplies
/ LED appliance
/ Between any heat-generating component and heat sink
/ 5G base station & infrastructure
/ EV electric vehicle
TYPICAL PROPERTIES
| PROPERTY | G3380NA | TEST METHOD | UNIT |
|---|---|---|---|
| Color | White | Visual | - |
| Resin base | Non-Silicone | - | - |
| Filler | Non-Metal | - | - |
| Viscosity | 96 | ISO 3219 | |
| Density | 2.2 | ASTM D792 | g/cm³ |
| Application temperature | -60~150 | - | °C |
| Bond line thickness | 55 | - | μm |
| ROHS & REACH | Compliant | - | - |
| THERMAL | |||
| Thermal conductivity | 1.3 | ASTM D5470 | W/m*K |
| Thermal impedance@50psi | 0.05 | ASTM D5470 | °C-in²/ W |
| Thermal impedance@50psi | 32.2 | ASTM D5470 | °C-mm²/ W |
