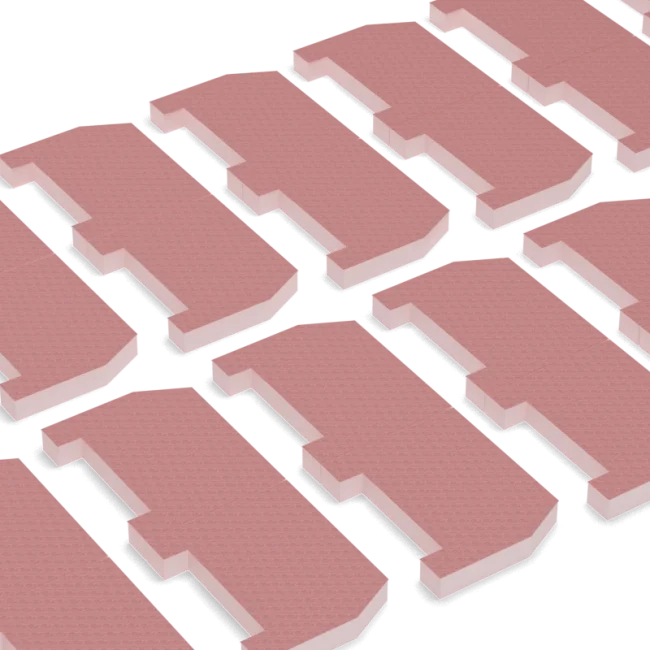

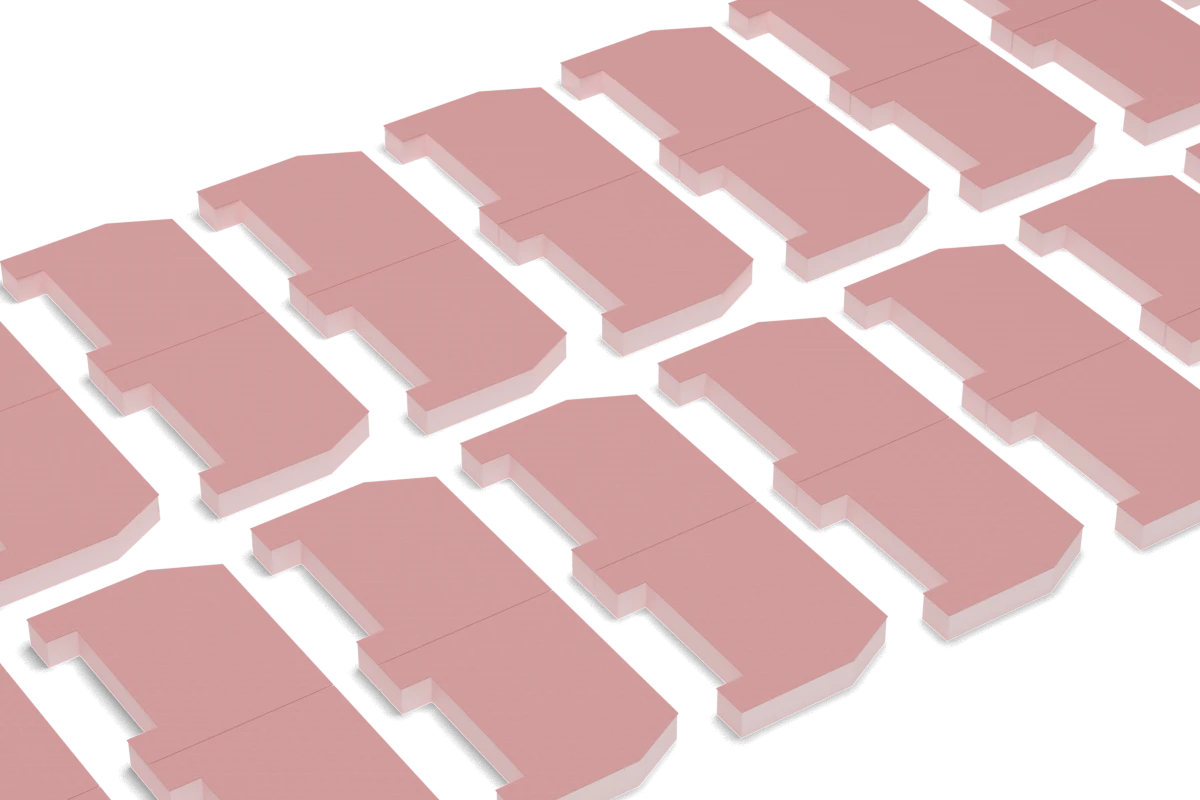

超軟導熱墊片 ——
S282-s
2.5 W/m*K
ShoreOO 18
LiPOLY S282-s 是一種為填補間隙而設計的導熱墊片，典型特性如下： 其熱導率為2.5 W/m*K。產品採用玻纖增強層與優異的自黏性，可緊密貼合不平整的散熱器表面，提升接觸面積。S282-s 同時也是一種優良的絕緣材料，具備低應力及減震特性。
CATEGORY
FEATURES
/ Thermal conductivity: 2.5 W/m*K
/ Designed for manufacturing
/ High dielectric breakdown
/ Shock and vibration absorber
/ Good mechanical strength
/ Fiberglass reinforced
SPECIFICATIONS
/ Roll form
/ Sheet form
/ Die-cut parts
TYPICAL APPLICATION
/ Between a component and heat sink
/ Flat-panel displays
/ LED, HDDs, DVDs
/ Heat pipe assemblies
/ Memory modules
/ Power supplies
/ 5G base station & infrastructure
/ EV electric vehicle
TYPICAL PROPERTIES
| PROPERTY | S282-s | TEST METHOD | UNIT |
|---|---|---|---|
| Color | Pink | Visual | - |
| Surface tack 2-side/1-side | 1 | - | - |
| Reinforced layer | Fiberglass | - | - |
| Thickness | Customized | ASTM D374 | mm |
| Density | 2.6 | ASTM D792 | g/cm³ |
| Hardness | 18 | ASTM D2240 | Shore OO |
| Application temperature | -60~180 | - | °C |
| ROHS & REACH | Compliant | - | - |
| THERMAL | |||
| Thermal conductivity | 2.5 | ASTM D5470 | W/m*K |
| Thermal impedance@10 psi | 1.094 | ASTM D5470 | °C-in²/ W |
| Thermal impedance@50 psi | 0.941 | ASTM D5470 | °C-in²/ W |
